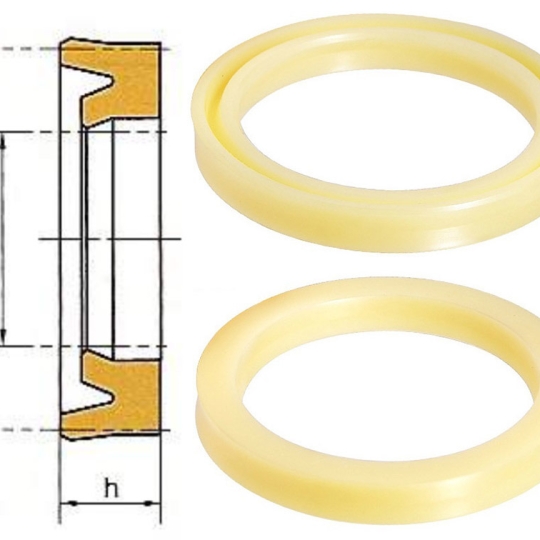

Phốt Ben ISI
Đặc điểm: Phốt thủy lực , thường dùng cho ty , Vật liệu Noxlan , màu vàng
- Đặc tính KT và ứng dụng:
+ Phốt sử dụng cho ty.
+ Áp suất làm việc :21 - 30 Mpa (300kg/cm2).
+ Vận tốc làm việc: 0.03 ~ 0.5 m/sec
+ Nhiệt độ làm việc: -35ºC ~ 100ºC
| ID | OD | CS | PRODUCT |
|---|---|---|---|
| 18 | 26 | 5 | ISI 18x26x5 |
| 20 | 28 | 5 | ISI 20x28x5 |
| 22.4 | 30 | 5 | ISI 22.4x30x5 |
| 25 | 33 | 5 | ISI 25x33x5 |
| 25 | 35 | 5 | ISI 25x35x5 |
| 28 | 35.5 | 5 | ISI 28x35.5x5 |
| 28 | 36 | 5 | ISI 28x36x5 |
| 30 | 40 | 6 | ISI 30x40x6 |
| 32 | 40 | 6 | ISI 32x40x6 |
| 31.5 | 41.5 | 6 | ISI 31.5x41.5x6 |
| 35 | 45 | 6 | ISI 35x45x6 |
| 35.5 | 45 | 6 | ISI 35.5x45x6 |
| 35.5 | 45.5 | 6 | ISI 35.5x45.5x6 |
| 40 | 48 | 6 | ISI 40x48x6 |
| 40 | 50 | 6 | ISI 40x50x6 |
| 45 | 55 | 6 | ISI 45x55x6 |
| 45 | 56 | 7 | ISI 45x56x7 |
| 50 | 60 | 6 | ISI 50x60x6 |
| 53 | 63 | 6 | ISI 53x63x6 |
| 55 | 65 | 6 | ISI 55x65x6 |
| 56 | 66 | 6 | ISI 56x66x6 |
| 60 | 70 | 6 | ISI 60x70x6 |
| 60 | 71 | 7 | ISI 60x71x7 |
| 63 | 73 | 6 | ISI 63x73x6 |
| 65 | 75 | 6 | ISI 65x75x6 |
| 67 | 77 | 6 | ISI 67x77x6 |
| 70 | 80 | 6 | ISI 70x80x6 |
| 71 | 81 | 6 | ISI 71x81x6 |
| 75 | 85 | 6 | ISI 75x85x6 |
| 85 | 95 | 6 | ISI 85x95x6 |
| 85 | 100 | 9 | ISI 85x100x9 |
| 90 | 105 | 9 | ISI 90x105x9 |
| 95 | 110 | 9 | ISI 95x110x9 |
| 98 | 112 | 8.5 | ISI 98x112x8.5 |
| 100 | 115 | 9 | ISI 100x115x9 |
| 105 | 120 | 9 | ISI 105x120x9 |
| 106 | 120 | 8.5 | ISI 106x120x8.5 |
| 106 | 121 | 9 | ISI 106x121x9 |
| 110 | 125 | 9 | ISI 110x125x9 |
| 112 | 125 | 9 | ISI 112x125x9 |
| 118 | 133 | 9 | ISI 118x133x9 |
| 120 | 135 | 9 | ISI 120x135x9 |
| 125 | 140 | 9 | ISI 125x140x9 |
| 130 | 145 | 9 | ISI 130x145x9 |
| 136 | 150 | 8.5 | ISI 136x150x8.5 |
| 140 | 155 | 9 | ISI 140x155x9 |
| 145 | 160 | 9 | ISI 145x160x9 |
| 150 | 165 | 9 | ISI 150x165x9 |
| 155 | 170 | 9 | ISI 155x170x9 |
| 160 | 175 | 9 | ISI 160x175x9 |
| 165 | 180 | 9 | ISI 165x180x9 |
| 170 | 185 | 9 | ISI 170x185x9 |
| 175 | 190 | 9 | ISI 175x190x9 |
| 180 | 200 | 16 | ISI 180x200x16 |
| 190 | 210 | 12 | ISI 190x210x12 |
| 200 | 220 | 12 | ISI 200x220x12 |
| 204 | 224 | 12 | ISI 204x224x12 |
| 210 | 230 | 12 | ISI 210x230x12 |
| 220 | 240 | 12 | ISI 220x240x12 |
| 225 | 245 | 12 | ISI 225x245x12 |
| 230 | 250 | 12 | ISI 230x250x12 |
| 240 | 260 | 12 | ISI 240x260x12 |
| 250 | 270 | 12 | ISI 250x270x12 |
| 260 | 285 | 16 | ISI 260x285x16 |
| 270 | 295 | 16 | ISI 270x295x16 |
| 280 | 305 | 16 | ISI 280x305x16 |
| 290 | 315 | 16 | ISI 290x315x16 |
| 300 | 325 | 16 | ISI 300x325x16 |
| ID | OD | CS | PRODUCT |
